Sol-Ark Hybrid Inverter Installation in New Jersey
Never Feel Powerless Again.

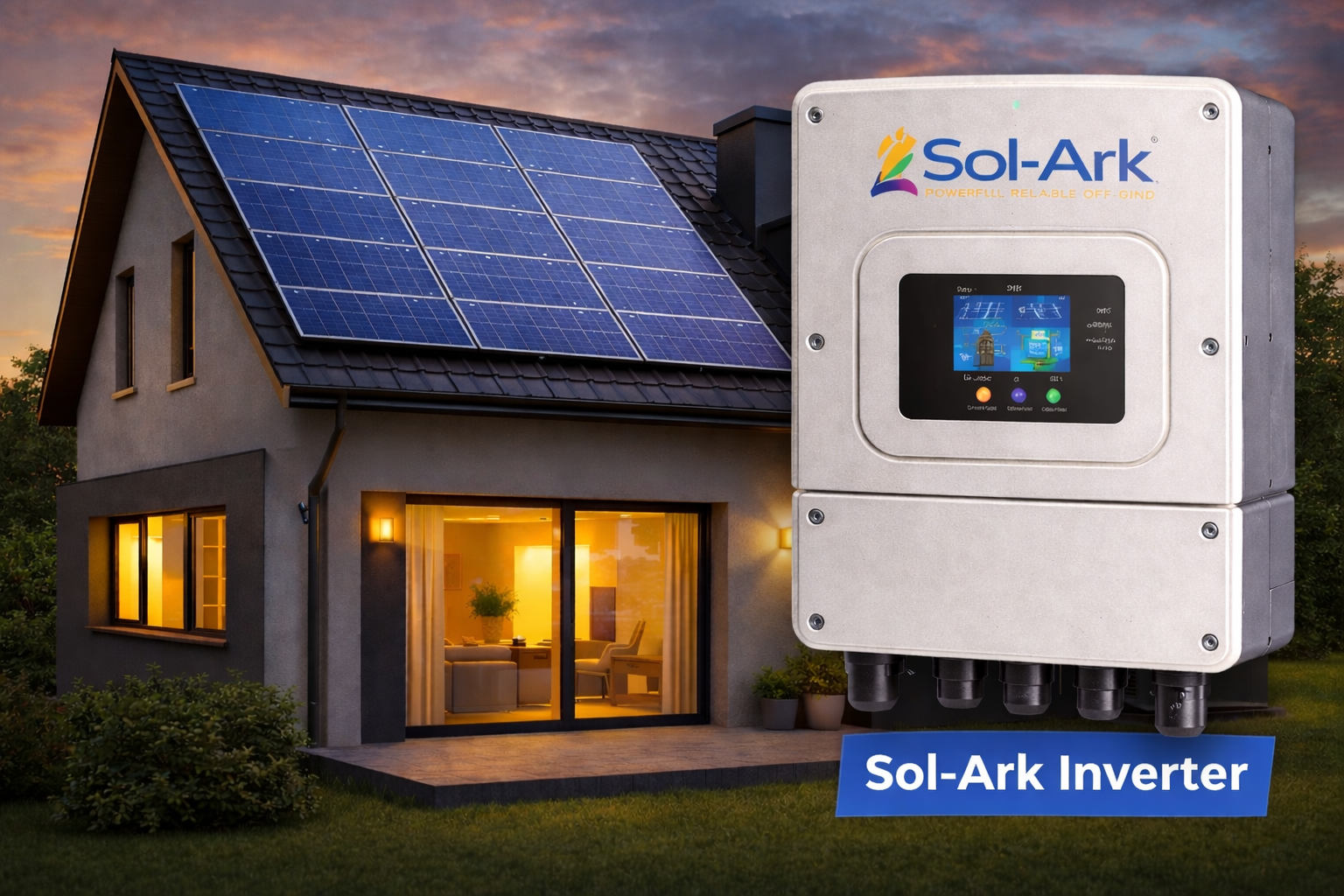

What Is the Sol-Ark Hybrid Inverter?
At the center of the Energy Ecosystem is the Sol-Ark hybrid inverter, which acts as the control hub—managing energy between solar, batteries, generator, grid, and your electrical loads.
One system. Total control. Reliable power—day or night.
Sol-Ark Inverter Product Line Up
Compare the Sol-Ark inverter lineup and find the right solution for your residential
or commercial energy project. Innovative Electric can help you choose the best model
based on your power needs, battery integration, solar goals, and backup requirements.
battery input, paralleling, electrical configuration, pass-through capability, and solar capacity.

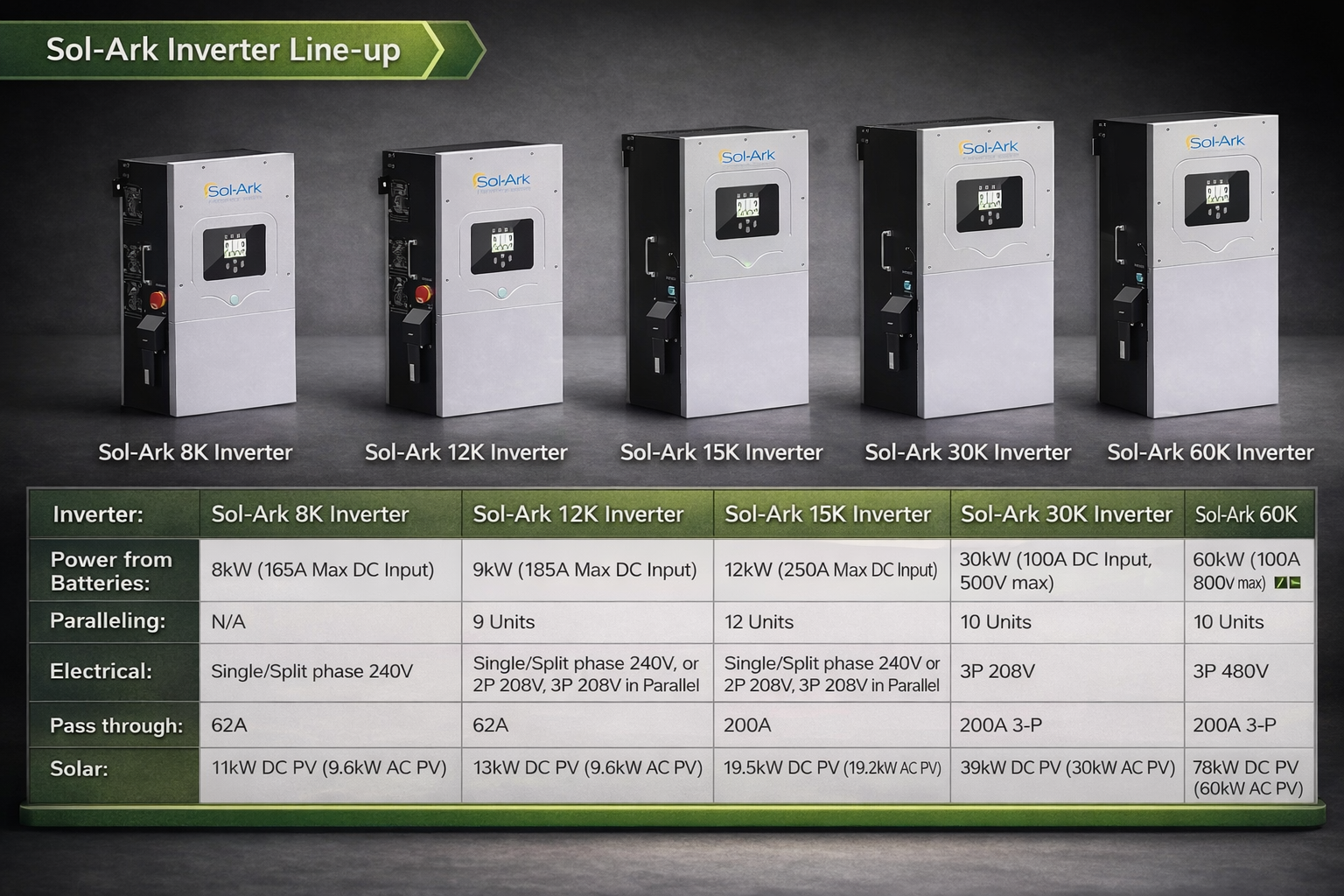

Sol-Ark Inverter Comparison Chart
| Inverter | Sol-Ark 8K Inverter | Sol-Ark 12K Inverter | Sol-Ark 15K Inverter | Sol-Ark 30K Inverter | Sol-Ark 60K Inverter |
|---|---|---|---|---|---|
| Power from Batteries | 8kW (165A Max DC Input) | 9kW (185A Max DC Input) | 12kW (250A Max DC Input) | 30kW (100A DC Input, 500V max) | 60kW (100A DC Input, 800V max) |
| Paralleling | N/A | 9 Units | 12 Units | 10 Units | 10 Units |
| Electrical | Single/Split phase 240V | Single/Split phase 240V, or 2P 208V, 3P 208V in Parallel | Single/Split phase 240V, or 2P 208V, 3P 208V in Parallel | 3P 208V | 3P 480V |
| Pass through | 62A | 62A | 200A | 200A 3-P | 200A 3-P |
| Solar | 11kW DC PV (9.6kW AC PV) | 13kW DC PV (9.6kW AC PV) | 19.5kW DC PV (19.2kW AC PV) | 39kW DC PV (30kW AC PV) | 78kW DC PV (60kW AC PV) |
Residential Solutions
The 8K, 12K, and 15K models are excellent choices for residential backup,
solar integration, and battery storage applications.
Scalable Power
With multiple paralleling options, Sol-Ark systems can be expanded to support
larger homes, commercial buildings, and future energy needs.
Commercial Capability
The 30K and 60K inverter options are designed for larger installations that
require higher voltage, greater pass-through, and more solar input capacity.
Need Help Choosing the Right Sol-Ark Inverter?
Innovative Electric can help you select the right Sol-Ark inverter for your home
or business based on your backup goals, solar plans, and battery storage needs.
Call: 908-879-7078
Email: sales@innoelec.net
How It Works
Solar Power
Generates clean energy during the day to power your home and reduce utility usage.
Battery Storage
Stores excess energy for use at night or during outages.
Generator Backup
Adds extended protection for long outages and high demand situations.
Sol-Ark Inverter
The Sol-Ark inverter intelligently routes power between all sources automatically.
Why Choose an Energy EcoSystem?
Whole Home Backup
Power your entire home or critical loads with seamless automatic switching
during outages. :contentReference[oaicite:1]{index=1}
Smart Energy Management
Built-in Time-of-Use controls allow you to manage energy based on peak pricing,
saving money on your electric bill. :contentReference[oaicite:2]{index=2}
Energy Independence
Reduce dependence on the grid and create a more resilient, self-sustaining power system.
Key Features
- Hybrid inverter integrates solar, battery, generator, and grid
- Whole-home backup capability
- Seamless automatic power switching (milliseconds)
- Battery-agnostic (works with multiple battery brands)
- Scalable system for future expansion
- Generator integration ready
- Remote monitoring & smart controls
Sol-Ark systems are designed to be flexible, scalable, and future-proof,
allowing upgrades and expansion as your energy needs grow.
Take Control of Your Power in New Jersey
Rising energy costs aren’t going away—but your dependence on the grid can.
Innovative Electric designs and installs complete Sol-Ark Hybrid Inverters
tailored to your home or business.
Call Today: 908-879-7078
Email: sales@innoelec.net
